Special equipment systemElectro-pneumatic controller
Dimensions: 48.6×148×80 mm, Mass: Approx. 500g

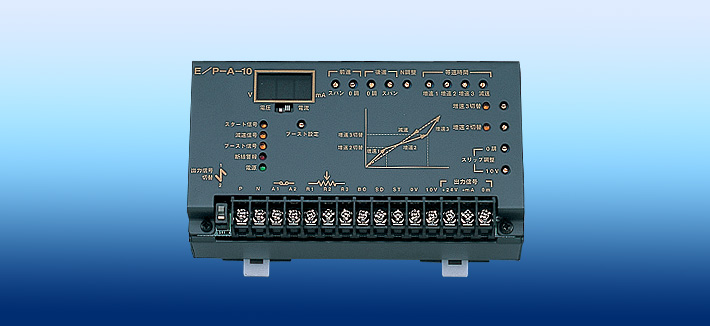

Electro-pneumatic controller: Model E/P-A-10
The electro-pneumatic controller outputs the signal from the potentiometer on the steering handle or operation dial in the form of current (voltage). It controls the governor air pressure proportional valve for ship engines.
List of systems
| Output time adjustment | Acceleration/constant speed time | Three-step adjustment function |  |
|---|---|---|---|
| Deceleration/constant speed time | Selected internally to decelerate according to acceleration/constant speed time or decelerate by one step | ||
| Output signal selection | Mode 1 | Forward/reverse speed adjustment (One-engine one-lever system) |  |
| Mode 2 | One direction speed adjustment (One-engine two-lever system) |  |
|
| With output meter | Use the mode selector to display governor output current/slip output voltage | ||
| Installation | Easy installation to a DIN rail | ||
