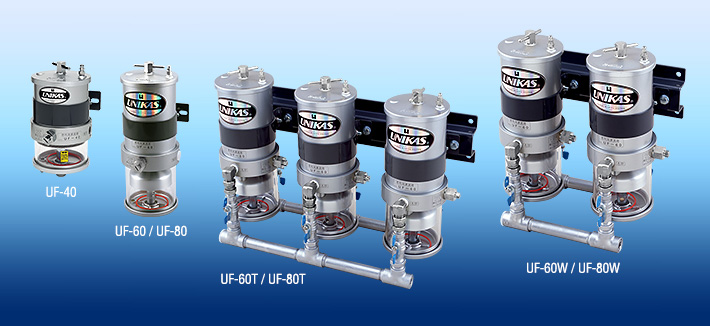

Fuel filterUF-40/UF-60/UF-80
- Contains a large filtering area within a light and compact body.
- Equipped with an emergency function and bypass valve for filter clogging.
- The transparent sedimentation tank with a drain valve facilitates maintenance.
- Use a specific filter element for light oil or A-heavy oil.
Applicable vessel
Inboard
Drive ship
Inboard/outdrive
Water jet

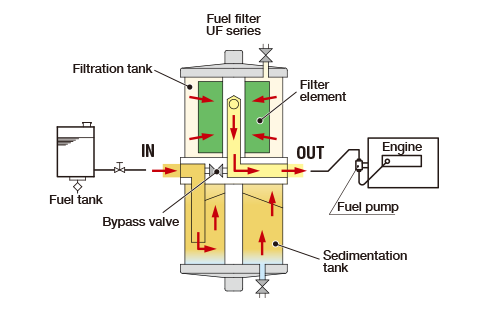

System diagram
List of systems
| Type | Applicable engine horsepower kw (ps) |
Initial filtration flow (L/H) |
Filtration precision (μ) |
Unit oil volume (L) |
Connector diameter | Mass (kg) |
|
|---|---|---|---|---|---|---|---|
| IN | OUT | ||||||
| UF-40 | ～220 （300） |
250 | 10/30 | 1.8 | Hose nipple φ14 | (Size of the filter body screw: Rc1/2) | 3.7 |
| UF-60 | 〜294 （400） |
350 | 10/30 | 3.3 | 4.5 | ||
| UF-60W | 〜588 （800） |
700 | 10/30 | 6.6 | Size of the filter body screw: Rc3/4 | 10.0 | |
| UF-60T | 〜882 （1200） |
1050 | 10/30 | 9.9 | 16.0 | ||
| UF-80 | 〜588 （800） |
700 | 10/30 | 4.8 | Hose nipple φ14 | (Size of the filter body screw: Rc1/2) | 5.4 |
| UF-80W | 〜1176 （1600） |
1400 | 10/30 | 9.6 | Size of the filter body screw: Rc3/4 | 12.0 | |
| UF-80T | 〜1765 （2400） |
2100 | 10/30 | 14.4 | 18.0 | ||
* The applicable engine horsepower is only indicative.
* Depending on the engine discharge rate, large filtration flow is required irrespective of the horsepower.
