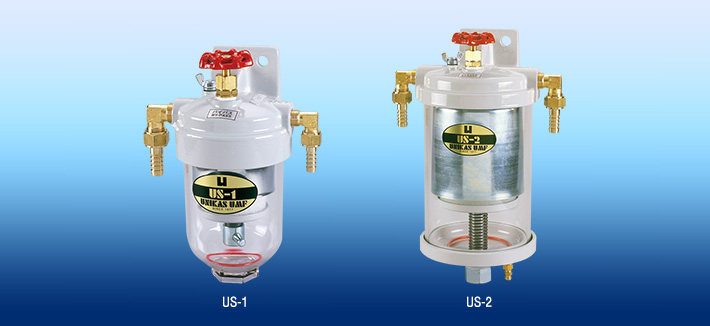

Fuel filterUS-1/US-2
- Recommended for a pre-filter of fuel filters, such as GF-V-20S/40S.
- Also used as a strainer.
Applicable vessel
Inboard
Drive ship
Inboard/outdrive
Water jet

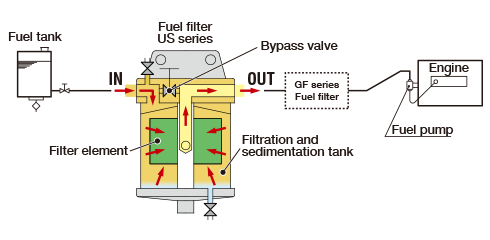

System diagram
List of systems
| Type | Applicable engine horsepower kw (ps) |
Filtration flow (L/H) |
Filtration precision (μ) |
Unit oil volume (L) |
Connector diameter | Mass (kg) |
|
|---|---|---|---|---|---|---|---|
| IN | OUT | ||||||
| US-1 | 〜44（60） | 60 | 200 | 1.0 | Hose nipple φ14 | Hose nipple φ10.5 | 2.5 |
| US-2 | 〜147（200） | 150 | 200 | 2.4 | Hose nipple φ14 | Hose nipple φ14 | 4.8 |
* The applicable engine horsepower is only indicative.
