The power trim system enables attitude control of the vessel.

Benefits of the power trim system

Reduces the friction between the vessel’s bottom and the water to increase the engine efficiency, vessel speed, and fuel economy. The lowered bow provides better field of vision, hence safer navigation.

Features of T32 series

The double-structured hydraulic cylinder prevents the hydraulic piping from being exposed to harsh outboard conditions so that the durability of the power trim cylinder is dramatically improved.

• Both the hydraulic cylinder and trim plate are all made of expensive stainless steel but have longer service life, achieving greater economy in the long term.
• Separating the DC power pack from the control unit makes it possible to shorten the hydraulic piping inside the vessel, achieving higher responsivity.
• The port and starboard power trims are independent, enabling easy attitude control.

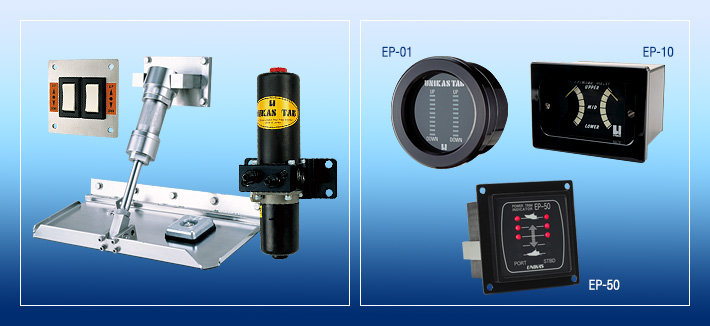

• Three types of high visibility trim tab indicators are available. (Optional)
  EP-50: Operation time proportional display
  EP-10: Analog display
  EP-01: LED display
• The UNIKAS proprietary dummy-cylinder-type follow-up transmitter is used to allow additional indicators to be installed just by internal piping/wiring work without dry-docking.

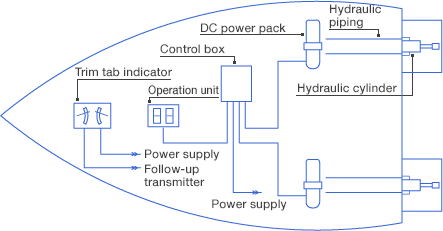

System diagram

List of systems
