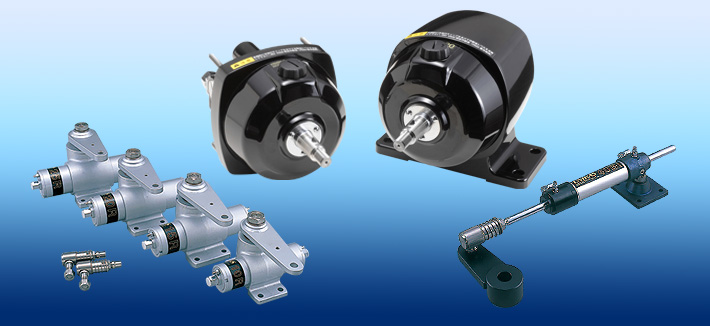

A basic model of the manual hydraulic steering system popular at ports around the world among professional fishermen for its outstanding performance since its debut.

• Helm pump

  It comes in five different discharge types, 19cm³, 32cm³, 34cm³, 42cm³, and 45cm³, and two different installation methods, HM51B and HM51P, to select from. The steering wheel S-N500 (Φ480) comes as standard.

• Steering cylinder

  Eight types of steering cylinders, including oscillating type R and direct acting type X, are available.
  The generated torque can be selected from anywhere within the range 830 N∙m to 2,574 N∙m.

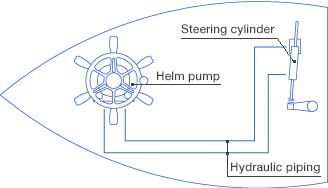

System diagram

List of systems
