Repeater compassEC-50 series

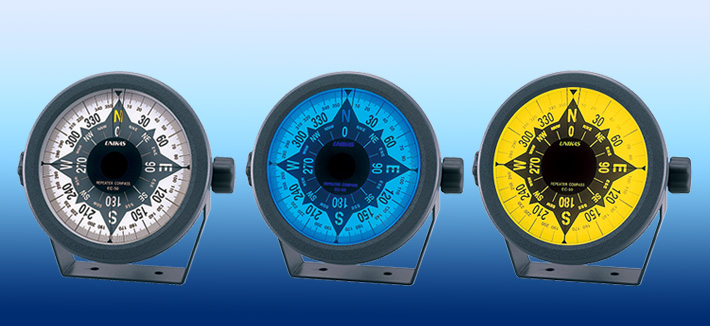

Repeater compass EC-50 series

Constantly displays the direction signal coming from the GPS compass or gyrocompass. Good visibility, subdued color tone and design illuminated by nighttime lighting make for a sophisticated cabin space.

Applicable vessel

  • OutboardOutboard
  • InboardInboard
  • Drive shipDrive ship
  • Inboard/outdriveInboard/outdrive
  • Water jetWater jet
  • Receives NMEA 0183, HDT/HDM sentences, to indicate directions.
  • Constantly sends direction signals in the form of NMEA 0183, HDT sentences.
  • Allows multiple repeater compasses to be connected.
  • The six-inch direction scale provides excellent visibility.
  • Easily connectable to UNIKAS autopilot systems.
  • Broader application range, including a GPS compass repeater.
  • Three-color selectable backlight with a dimmer function.

System diagram

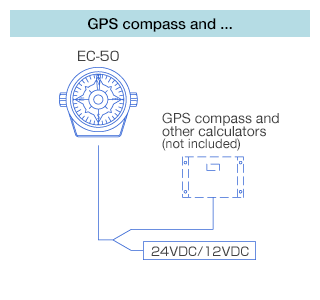

  • GPS compass and ...

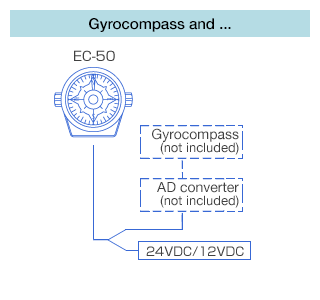

  • Gyrocompass and ...

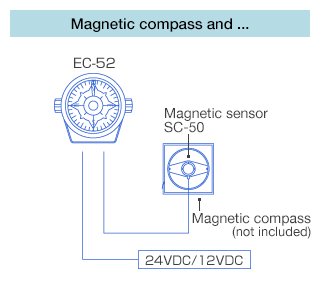

  • Magnetic compass and ...

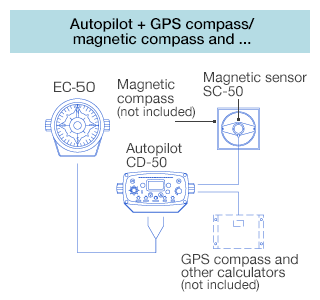

  • Autopilot + GPS compass/magnetic compass and ...
  • Installing multiple EC-50s ...

Type

GPS compass calculator Gyrocompass Autopilot
CD-50/60R
Autopilot
CD-31/41R
Magnetic sensor
SC-50
Connection EC-50
EC-51
EC-52
